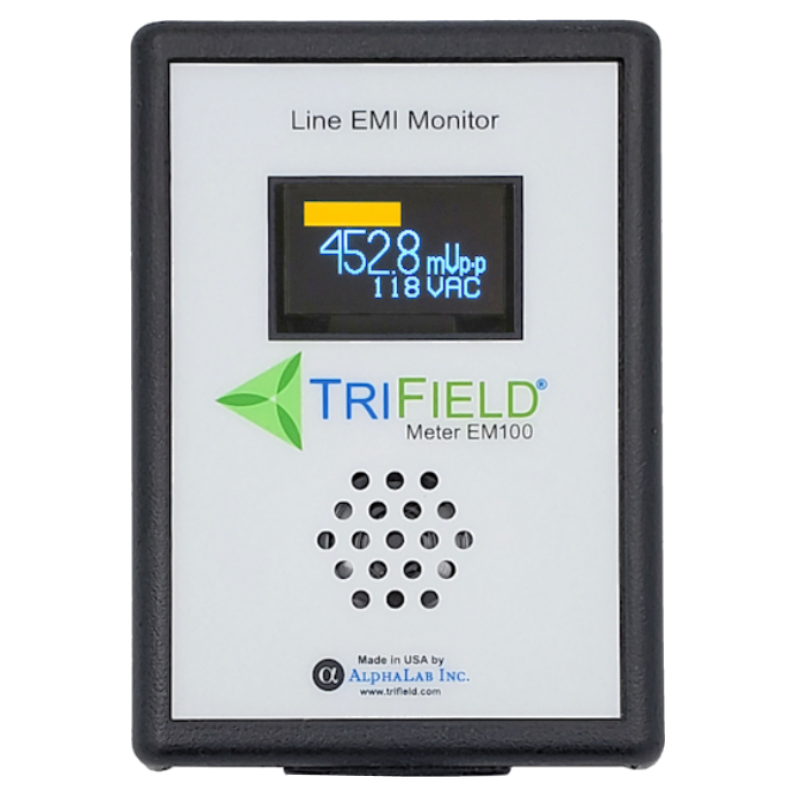

Power line monitor, measures noise on AC mains power
Power line monitor, measures noise on AC mains power

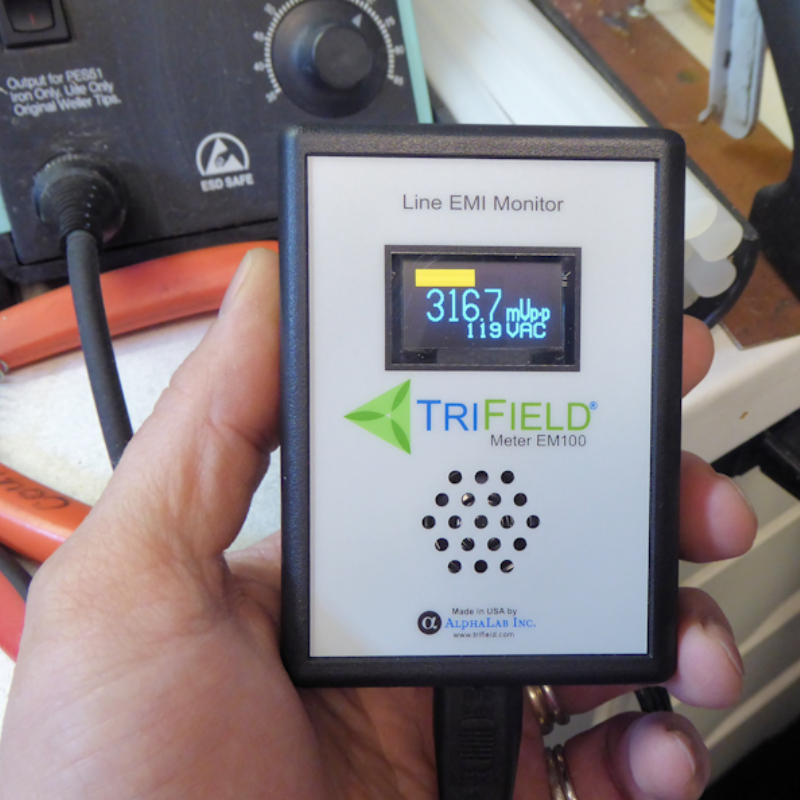

EMI Line Monitor, measures noise on AC mains power, measuring workbench

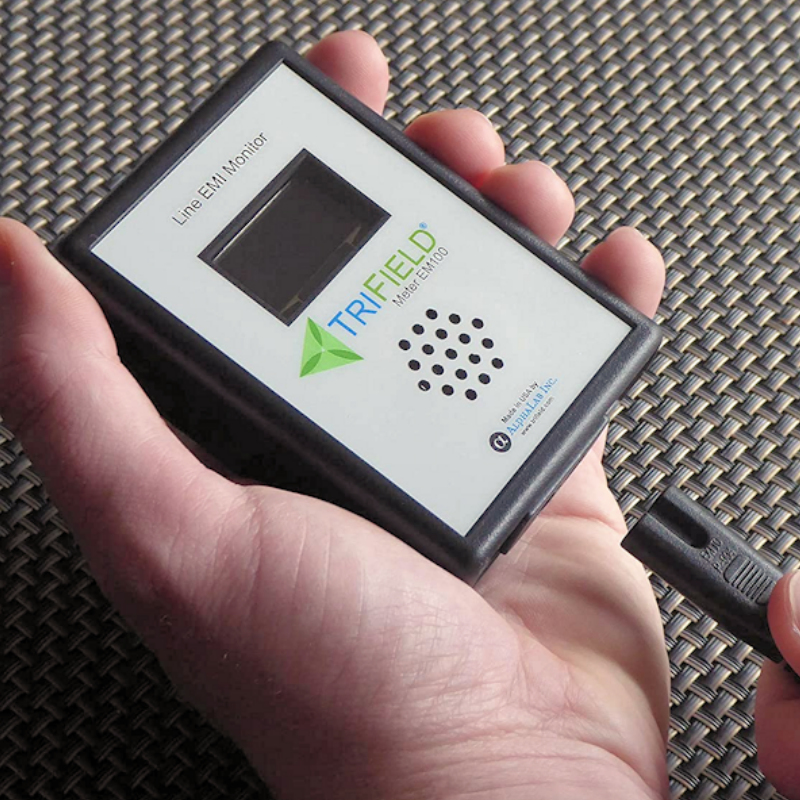

Power line monitor being plugged in

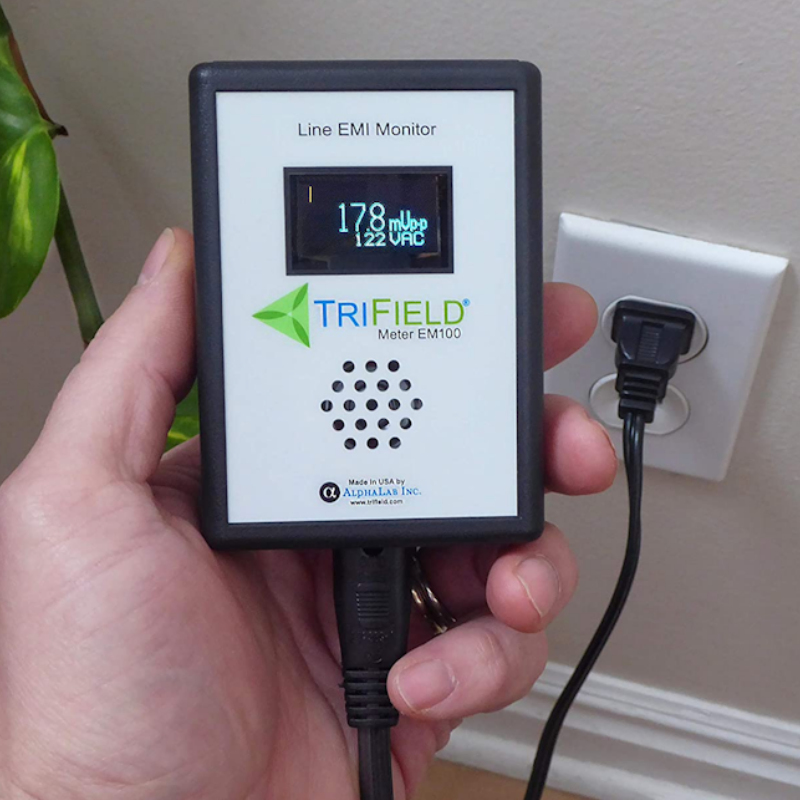

Power line monitor, measures noise on AC mains power, measuring levels at home

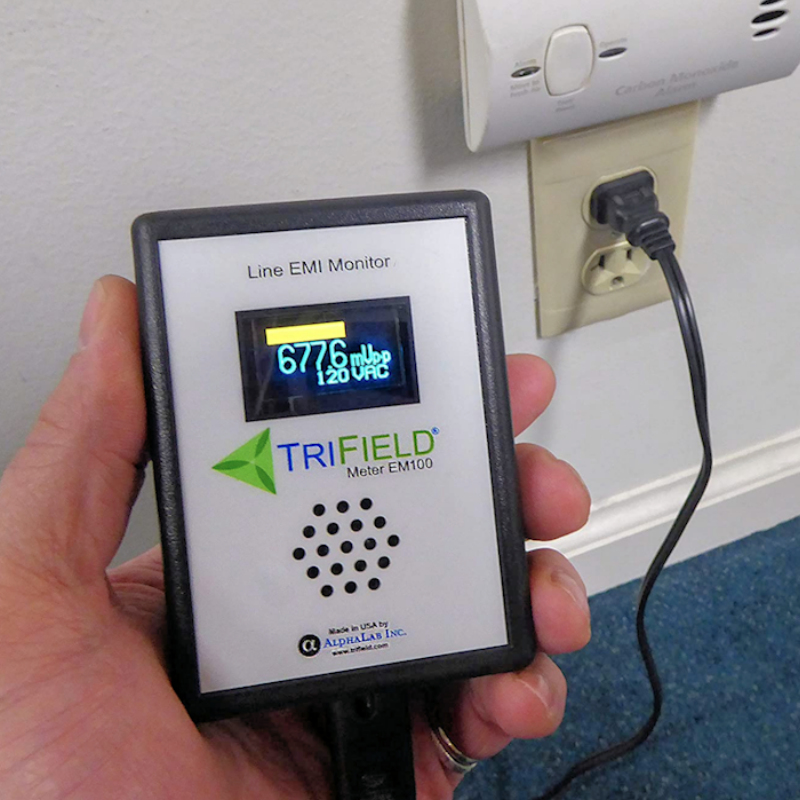

Power line monitor, measures noise on AC mains power, measuring in an office environment

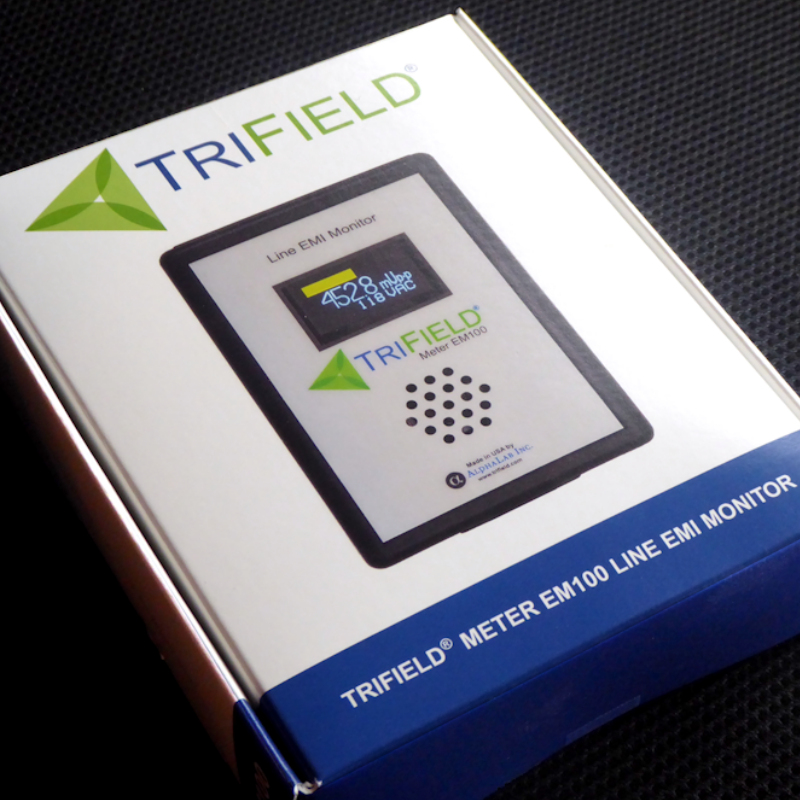

Power line monitor packaging

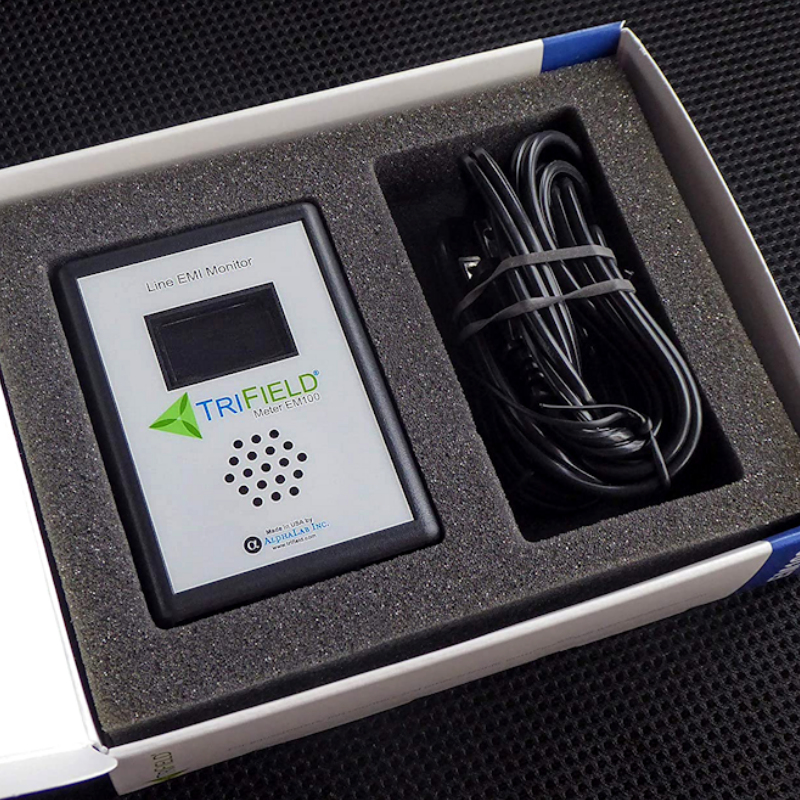

Power Line Monitor in Packaging
Power Line Monitor Feature Sheet

Power Line Meter

$143.00

A power line monitor that displays line noise in mVp-p (peak to peak). AC line noise is commonly referred to as Dirty Electricity, and can be a source of EMI.

SKU: PLM Category: Tag:

Description

Product Description:

The Line EMI Meter EM100 measures electromagnetic interference in a single-phase AC power line. It plugs into a wall outlet (mains socket), requires no battery, and immediately displays total line noise in millivolts peak to peak (range 1999.9 mVp-p, resolution 0.1 mVp-p) in the frequency range 10 KHz – 10 MHz (the frequency limits at which sensitivity is ½ of the maximum sensitivity).

An internal speaker allows you to hear the sound of the EMI (amplitude demodulated) which can be useful in identifying the source.  AM or shortwave radio stations can often be picked up directly on the line and the broadcasts can be heard through the speaker, as well as the whine from electric motors, static bursts that represent transient noise, and the modulated patterns from Switch Mode Power Supplies (SMPS). SMPS are found in computers, TVs, phone chargers, ect.

Power generation equipment (such as solar inverters) can also often be a source of line noise.

SPECIFICATIONS: Power Line Meter Model PLM
Operating Voltage: 85-300 VAC 50/60 Hz.
Line Voltage Measurement Accuracy: 85-250 VAC; Accuracy +/- 3 %
Line Noise Range: 0.1-1999.9 mVp-p AC (differential)
Line Noise Measurement Accuracy: +/- 8% @ 20 kHZ to 2 MHz; within a factor of 2 from 10 kHz to 10 MHz
Size: 5.2 x 3.6 x 1.6 inches; 132 x 91 x 41 mm
Weight: 8 oz
Power Cable: Detachable 2-wire cord (appropriate to country)



EM100 User Guide
